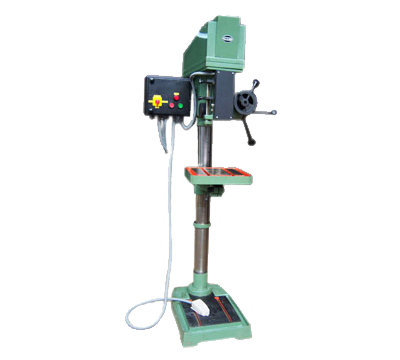

DRILLING CUM TAPPING MACHINE

  • A flourishing enterprise in this domain, engaged in presenting a wide range of Drilling Cum Tapping Machine. This machine finds wide applications use in drilling, boring, medium-load milling, scribing, scaling, and measuring area. Such accomplishment from the machine is expected by the entire industry. The quality and the better performance are the key specifications of the machine. Offered machine is made available three different sizes that comfort the clients as per space and prices.

      Features :

    • Accurate tapping.

    • Aligned attachments.

    • Abrasion resistance.

    • Robust construction.

    • High Precision spindle made from alloy steel.

    TECHNICAL SPECIFICATIONS :

    20mm Light Duty Pillar Drill Machine with Fine Feed
    Working Range :
    Max. dist. between spindle centre to column face 200MM.
    Max. dist. between spindle nose to working table 950MM.
    Max. dist. between spindle nose to working table 965MM.
    Column diameter 74.30mm.
    Tilting working table Fixed.
    Electrical :
    Power Supply 415V, 3 PHASE
    Electric Motor 1 HP, 1440 RPM
    25mm Light Duty Pillar Drill Machine with Fine Feed
    Working Range :
    Max. dist. between spindle centre to column face 228MM.
    Max. dist. between spindle nose to working table 1000MM.
    Column diameter 90MM.
    Electrical :
    Electric Motor 1 HP, 1400 RPM
