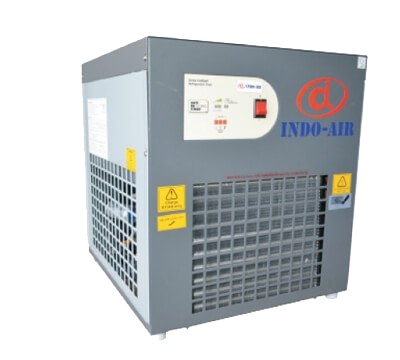

REFRIGERATION AIR DRYER HIGH PRESSURE

  • The technology and development engineers at oil-free technology INDO-AIR did extensive research on the critical components of the compressors to operate in oil free operating conditions.

      User Industries :

    • Pet Bottling

    • Air Blast Circuit Breakers

    • Pharmaceuticals

    • Gas Transmission & Distribution

    • Defence Establishments

    • Shipyards, Oil Exploration

    • Pneumatic Testing

    TECHNICAL SPECIFICATIONS :

    MODEL CFM Working pressure
    Kg/cm 2    		 Conn. BSP Refrigerant Power
    Supply v/ph     		Condensor
    type     		Normal Power
    Consumption kw    		 Length
    mm    		 Width
    mm    		 Height
    mm     		Weight
    kg
    IAD 025-40 25 40 ½" R 134a 220/1 Air 0.19 400 500 500 40
    IAD 045-40 45 40 ½" R 134a 220/1 Air 0.19 400 500 500 45
    IAD 060-40 60 40 ¾" R 134a 220/1 Air 0.37 550 550 730 65
    IAD 080-40 80 40 ¾" R 134a 220/1 Air 0.37 550 550 730 70
    IAD 100-40 100 40 1 ½" R 134a 220/1 Air 0.64 700 750 900 90
    IAD 150-40 150 40 1 ½" R 22 220/1 Air 0.64 700 750 900 105
    IAD 200-40 200 40 1 ½" R 22 220/1 Air 1.40 700 750 900 120
    IAD 250-40 250 40 1 ½" R 22 220/1 Air 1.40 700 750 900 130
    IAD 300-40 300 40 1 ½" R 22 220/1 Air 1.40 700 750 900 130
    IAD 400-40 400 40 1 ½" R 22 220/1 Air 1.40 700 750 900 130
