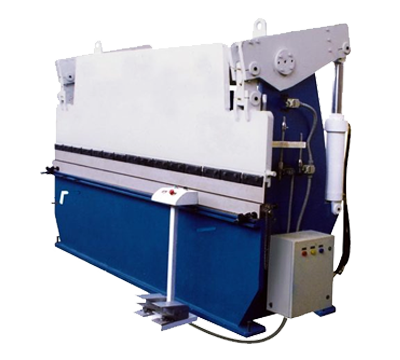

Steel Body Hydraulic Press Brake.

Standard Accessories :

Electric Motor, Control Panel with Selection of Inch – Once – Auto mode of operation, Foot Switch, Fine Stroke adjustment rod with limit Switches, Manual Back Gauge, Standard V – Block and Punch, Manual Lubrication.

Drive System :

Two individual gear drives transmit the power to the Ram generating uniform load distribution through out the length. Gears & Pinions are made out of high quality alloy steel. The gear system provides appropriate speed to balance the transmission of torque on the eccentrics.

Technical Specifications :

Model	Tonnage	TableLength	Hydraulic PressBrake BlendingCapacity(In M.S. UTS)450 kg/mm2		TableWidth	ClearPass	RamStroke	OpenHeight	ThroatDepth	SpeedApproachPressingReturn	MotorH.P.	Packing Dimensionmm( Lx W x H )	Approx.Weigth
JHPB- 1	20	1525	1250×2	800×3	125	1050	100	250	100	35-10-35	5	1700x1050x1900	1500
JHPB- 2	30	2030	2030×2	1250×3	125	1550	100	250	200	30-7-30	3	2200x1150x1900	2200
JHPB- 3	40	2540	2540×2	1525×3	180	2050	100	250	200	40-8-45	5	2700x1150x1900	2600
JHPB- 4	50	2540	2540×2.5	2030×4	180	2050	100	250	200	40-7-40	5	2700x1050x1900	3700
JHPB- 5	65	3100	3100×2.5	2540×4	180	2550	150	330	200	28-5-40	5	3350x1200x2030	3900
JHPB- 6	50	2030	2030×3	1525×4	180	1550	100	250	200	40-7-42	5	2200x1050x1900	2900
JHPB- 7	65	2540	2540×3	2030×4	180	2055	150	330	200	28-5-40	5	2700x1200x2030	3400
JHPB- 8	80	3100	3100×3	2540×4	180	2550	150	330	200	38-6-45	7.5	3350x1550x2030	5200
JHPB- 9	100	4000	4000×3	3100×4	180	3550	150	330	300	40-6-45	10	4250x1650x2300	6200
JHPB- 10	50	1525	1525×4	1250×5	180	1050	100	250	200	40-7-42	5	1700x1050x1900	2300
JHPB- 11	65	2030	2030×4	1525×5	175	1550	125	330	200	29-6-50	5	2200x1200x2000	3000
JHPB- 12	80	2540	2540×4	2030×5	180	2050	150	330	200	38-6-45	7.5	2700x1550x2300	4200
JHPB- 13	100	3100	3100×4	2540×5	180	2550	150	330	200	40-6-45	10	3350x1550x2300	5700
JHPB- 14	125	4000	4000×4	3100×4	230	3550	150	350	300	38-5-42	15	4200x1650x2540	7500
JHPB- 15	100	2540	2540×5	2030×6	180	2050	150	330	200	40-6-45	10	2700x1150x2300	4900
JHPB- 16	125	3100	3100×5	2540×6	230	2550	150	350	300	38-5-42	15	3350x1650x2540	6500
JHPB- 17	160	4000	4000×5	3100×6	230	3100	200	350	300	38-6-45	20	4350x2050x2750	7900
JHPB- 18	125	2540	2540×6	2030×8	230	2050	150	350	300	38-5-42	15	2750x1650x2540	6000
JHPB- 19	160	3100	3100×6	2540×8	230	2550	150	350	300	38-6-45	20	3350x1650x2540	7500
JHPB- 20	200	4000	4000×6	3100×8	230	3100	200	400	300	38-6-45	25	4350x2050x2750	9500
JHPB- 21	160	2540	2540×8	2030×10	230	2050	150	350	300	35-6-45	20	2750x1800x2600	7200
JHPB- 22	200	3100	3100×8	2540×10	230	2550	200	400	300	35-7-45	25	3350x2050x2750	8500
JHPB- 23	250	4000	4000×8	3100×10	300	3100	200	400	300	35-6-42	30	4350x2100x2800	12000
JHPB- 24	250	3100	3100×10	2540×12	300	2550	200	400	300	35-7-45	30	4350x2100x2800	11500
JHPB- 25	300	4000	4000×10	3100×12	300	3100	200	400	300	35-6-42	30	4350x2150x2900	14000
JHPB- 26	300	3100	3100×12	2540×16	300	2550	200	400	300	35-6-42	30	3350x2150x2900	11000
JHPB- 27	400	4000	4000×12	3100×16	300	3100	250	500	350	30-6-38	40	4350x2200x3100	17000
