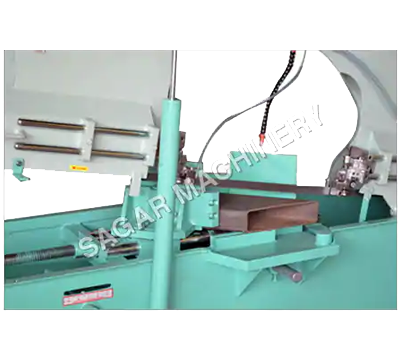

12” BANDSAW WITH SWIVELING VICE

  • With core competency in this domain, we are instrumental in exporting and supplying a superior assortment of 12” Bandsaw with Swiveling vice arrangement. Provided machine is extensively used for cutting metal sheets in required shape and size. This machine is manufactured using pristine quality components and progressive techniques under the surveillance of skilled professionals.

      Features :

    • It can cut Round, Square, Flats, Pipes, Angles, Channels, & Steel.

    • It can cut various types of materials like Mild Steel, Alloy Steel, Brass.

    • There is efficient clamping vice.

    • It gives smooth & fast cutting.

    • It has precise & easy feed control.

    • Bi-metal cutting blade has optimum working capacity..

    Technical Specifications :

    CUTTING CAPACITY
    Round Bar at 90 degree : 300 MM.
    Round Bar at 45 degree : 200 MM.
    Round Bar at 60 degree : 250 MM.
    Square Bar at 90 degree : 250 X 250 MM.
    Square Bar at 45 degree : 200 X 200 MM.
    Square Bar at 60 degree : 225 X 225 MM.
    ELECTRIC POWER
    Blade Size : 3760 X 27 X 0.9 MM.
    Motor Power Require : 2 HP / 960 RPM.
    Coolant Pump Power : 0.15 HP / 2800 RPM.
    Blade Speed : 22 - 37 - 55 - 75 Mtr/Min.
    Net weight of Machine : 625 Kg.
