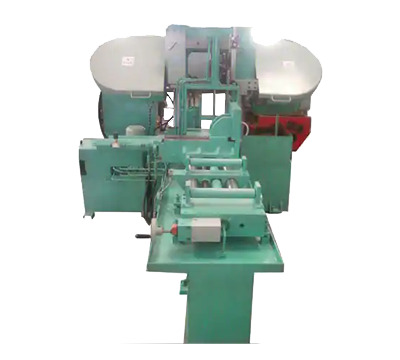

Fully Automatic Double Column

  • With core competency in this domain, we are instrumental in exporting and supplying a superior assortment of Fully Automatic Double Column Band Saw Machine. Provided machine is extensively used for cutting metal sheets in required shape and size. This machine is manufactured using pristine quality components and progressive techniques under the surveillance of skilled professionals. Apart from this, the offered Fully Automatic Double Column Band Saw Machine can be availed from us at economical prices.

      Features :
    • It can cut Round Bar, Square Bar, Flat, Pipes etc.

    • It can cut various types of materials like Mild Steel, Alloy Steel, Brass.

    • There is efficient clamping vice.

    • It can cut Round bars & Pipes in Bundle.

    Technical Specifications :


    CUTTING CAPACITY
    Round Bar : 400 MM.
    Square Bar : 400 X 400 MM.
    ELECTRIC POWER
    Main Drive Motor(HAVELLS) : 5.00 HP.
    Hydraulic Motor(HAVELLS) : 1.5 HP.
    Coolant Motor : 0.15 HP.
    Blade Size : 5300 X 34 X 1.1 MM.
    Blade speed : 20 to 80 Mtr / Min
    Hydraulic Oil Reservoir : 100 Ltrs.
    Coolant Tank capacity : 40 Ltrs.SHANTHI Gear Box
    SHANTHI Gear Box :Over all dimensions with oil 3.0 Ltrs.
    Over all dimensions : L: 2600 mm, W:2100 mm, H:800 mm
    Weight of the Machine : 2500 Kg (App.)
