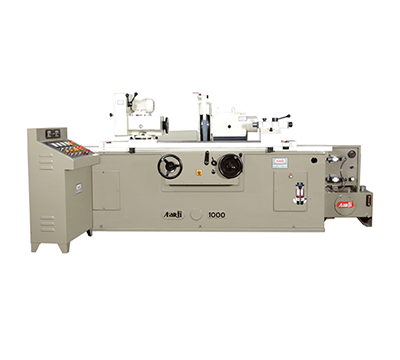

HYDRAULIC CYLINDRICAL GRINDING MACHINE

  • We are specialized in offering a wide range of Hydraulic Cylindrical Grinding Machines that are made using high grade material. Offered by us, these machines are well-known for their efficiency and their grinding application in various small and large scale production.

    • Construction Base :
      This is a high grade alloy cast iron body designed to make easy movement of table slide, by providing V - ways and flat ways duly hand scraped to fine tolerance to achieve highest accuracy.

    • Workhead & Tailstock :
      Work head spindle has been made for revolving as well as stationary centers.

    • Wheelhead :
      Designed to ensure maximum rigidity and smooth operation.

    TECHNICAL SPECIFICATIONS :

    ID Particulars Aarti H-0 Aarti H-1 Aarti H-2 Aarti H-3 Aarti H-4
    1 Capacities MM 450 600 800 1000 1250
    2 Maximum grinding length MM 450 600 800 1000 1250
    3 Maximum height of centres MM 150mm 150mm 150mm 150mm 150mm
    4 Maximum swing over bed 295mm 295mm 295mm 295mm 295mm
    5 Maximum grinding diameter 100mm 100mm 100mm 100mm 100mm
    6 Table feed HYDRAULIC INF INITELY VARIABLE HYDRAULIC INF INITELY VARIABLE HYDRAULIC INF INITELY VARIABLE HYDRAULIC INF INITELY VARIABLE HYDRAULIC INF INITELY VARIABLE
    7 Range of table feed per MM/minute 100 - 4000 100 - 4000 100 - 4000 100 - 4000 100 - 4000
    8 Maximum table swivel -2+7 -2+7 -2+7 -2+7 -2+7
    9 Wheel Head Rapid Approach/Retraction 35 MM 35 MM 35 MM 35 MM 35 MM
    10 Auto wheel head in feed at Reversal 0.01 0.01 0.01 0.01 0.01
    11 Hydraulic Power pack Motor 0.75 KW / 1 H.P 0.75 KW / 1 H.P 0.75 KW / 1 H.P 0.75 KW / 1 H.P 0.75 KW / 1 H.P
    12 Workhead Swivel on either-side ±45 ±45 ±45 ±45 ±45
    13 Work Spindle Speed 3 3 3 3 3
    14 Work Spindle Speed Range 65,96,132 65,96,132 65,96,132 65,96,132 65,96,132
    15 Work Head Motor 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P
    16 Taper In Work Spindle MT-4 MT-4 MT-4 MT-4 MT-4
    17 Taper In Tail Stock Spindle MT-4 MT-4 MT-4 MT-4 MT-4
    18 Transverse Movement of Wheel Head 125 MM/max. 125 MM/max. 125 MM/max. 125 MM/max. 125 MM/max.
    19 Size of Grinding Wheel 400 X 38 X 127 400 X 38 X 127 400 X 38 X 127 400 X 38 X 127 400 X 38 X 127
    20 RPM of Grinding Wheel 1550 1550 1550 1550 1550
    21 Wheel Head Motor 2.27 KW / 3 H.P 2.27 KW / 3 H.P 2.27 KW / 3 H.P 2.27 KW / 3 H.P 2.27 KW / 3 H.P
    22 Coolant Motor 0.11 KW / 0.15 H.P 0.11 KW / 0.15 H.P 0.11 KW / 0.15 H.P 0.11 KW / 0.15 H.P 0.11 KW / 0.15 H.P
