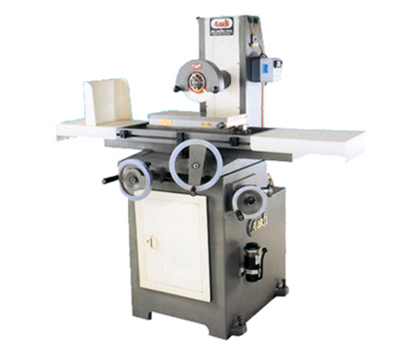

MANUAL SURFACE GRINDING

  • Our organization holds expertise in manufacturing, supplying and exporting Head Surface Grinding Machine. These machines made using quality-assured cast iron that is well tested for such heavy duty usage, ensuring tough construction.

    • Base :
      The Machine is Built of Heavy duty cast iron with high Grade cast iron bese hand Scraped to fine tolerance to Achieve highest Accuracy.

    • The Wheel Head :
      The Grinding Wheel spindle is hardened & Grounded. The Spindle Runs in Precision angular Contact Bearings and driven by flange Mounted Motor though Flexible Couplings, Ensuring through Free Service for a long life.

    • The Mocrofeed System :
      Vertical Grinding wheel Slide Movement down at right side in the body. The Vertical wheel dial least count in 0.01 mm. and Micro feed least count un 0.002 mm.

    TECHNICAL SPECIFICATIONS :

    ID Particulars Aarti M-1 Aarti M-2
    1 Working Surface of the table 225 x 450 mm 300 x 600 mm
    2 Maximum Height from table to Grinding Wheel 275 mm 275 mm
    3 Vertical feed Leastcount 0.01 mm 0.01 mm
    4 Microfeed Leastcount 0.002 mm 0.002 mm
    5 Cross Feed Leastcount 0.05 mm 0.05 mm
    6 Spindle Speed 2800 RPM 2800 RPM
    7 Size of Grinding Wheel ( Dia x Width x Bore ) 200 x 13 x 31.75 mm 200 x 20 x 31.75 mm
    8 Magnetic Chuck Recommended 200 x 450 mm 250 x 600 mm
    9 Electric Motor Recommended 75K.W. 3 Phase 1 HP 2800 RPM 1.5K.W. 3 Phase 2 HP 2800 RPM
