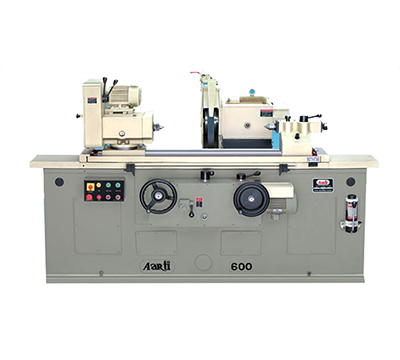

MECHANICAL CYLINDRICAL GRINDING MACHINE

  • We are specialized in offering a wide range of Mechanical Cylindrical Grinding Machines that are made using high grade material. Offered by us, these machines are well-known for their efficiency and their grinding application in various small and large scale production.

    • Construction Base :
      The drive to work head spindle is given by and electric motor through V-belts. The Tail stock spindle runs in a honed bore are spring loaded for quick release. Morese taper are arranged for dead centers.

    • Workhead & Tailstock :
      Work head spindle has been made for revolving as well as stationary centers.

    • Wheelhead :
      Designed to ensure maximum rigidity and smooth operation. The spindle is fitted with white metal taper bushes. The Grinding wheel is fitted on a taper nose mounted in wheel-flange, arranged to balance for vibration free operation.

    TECHNICAL SPECIFICATIONS ::

    ID Particulars Aarti M-0 Aarti M-1 Aarti M-2 Aarti M-3 Aarti M-4
    1 Capacities MM 450 600 800 1000 1250
    2 Maximum grinding length MM 450 600 800 1000 1250
    3 Maximum height of centres MM 150mm 150mm 150mm 150mm 150mm
    4 Maximum swing over bed 295mm 295mm 295mm 295mm 295mm
    5 Maximum grinding diameter 100mm 100mm 100mm 100mm 100mm
    6 Table feed Mechanical Mechanical Mechanical Mechanical Mechanical
    7 Number of table feed 6 6 6 6 6
    8 Range of table feed per minute/mm 65, 140, 200, 215, 430, 635 65, 140, 200, 215, 430, 635 65, 140, 200, 215, 430, 635 65, 140, 200, 215, 430, 635 65, 140, 200, 215, 430, 635
    9 Maximum table swivel -2+7 -2+7 -2+7° -2+7 -2+7
    10 Electric motor for table drive 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P 0.37 KW / 0.5 H P
    11 Taper in workhead spindle MT - 4 MT - 4 MT - 4 MT - 4 MT - 4
    12 Transverse movement of wheel head 125 mm MAX. 125 mm MAX. 125 mm MAX. 125 mm MAX. 125 mm MAX.
    13 Size of grinding wheel 400 x 38 x 127 mm 400 x 38 x 127 mm 400 x 38 x 127 mm 400 x 38 x 127 mm 400 x 38 x 127 mm
    14 RPM of grinding wheel 1550 RPM 1550 RPM 1550 RPM 1550 RPM 1550 RPM
    15 Taper in tailstock spindle MY - 4 MY - 4 MY - 4 MY - 4 MY - 4
    16 Coolant pump 0.11 KW / 0.15 H P 0.11 KW / 0.15 H P 0.11 KW / 0.15 H P 0.11 KW / 0.15 H P 0.11 KW / 0.15 H P
