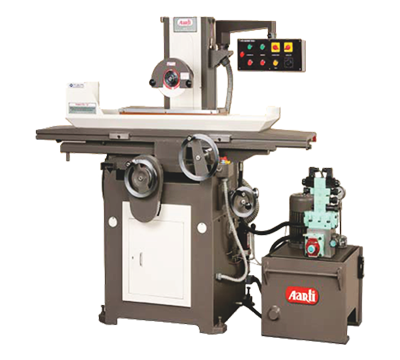

HYDRAULIC SURFACE GRINDING MACHINEE

  • Clients can avail qualitative Hydraulic Grinding Machine from us at economical rates. Compact in structure, these machines are very rigid in construction. Offered machines are vibration free and are available with variable milling speeds along with hydraulic operable table movements.

    These machines have convenient and perfect angle of wheel dressing mechanism. Valued patrons can avail Hydraulic Grinding Machine from us, ensuring door-step delivery at customers' premises, within stipulated time.

    • The Structure :
      The machine is built of heavy duty high grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy. Reciprocation table provide V & Flat (guide) ways lining with TURCITE - B for easy movement.

    • The Wheel Head :
      The Wheel head spindle hardned & ground, runs with precision angular-contact bearings with imported greece to have long trouble free service and driven by flange mounted motor through flexible couplings.

    • The Hydraulic System :
      Separete Hydraulic power pack is duty fitted with 24 V DC pielot operated Solenoid valve.

    • The Micro feed system :
      Wheel head - slide movement right side in the base. Wheel head feed least count in 0.01 mm and microfeed least count in 0.002 mm.

    • The Cross Feed :
      The cross feed is through a lead screw and nut. The automatic cross feed at every reversak if the table is provided through engaged with gear mechanisim and feed controlled by a solid state electronic system. The cross feed is infinitely variable to get desirable accuracy and surface finish.


    TECHNICAL SPECIFICATIONS :

    ID Model Aarti H-1 Aarti H-2
    CAPACITY
    1 Max. table size 225 × 450 mm 300 × 600 mm
    2 Max. longitudinal travel 500 mm 650 mm
    3 Max. cross traverse 225 mm 305 mm
    4 Max. Spindle centre height above table 275 mm 275 mm
    5 Max. table speed 14m/min 14m/min
    6 Power Cross Traverse MM / Min 2000
    7 Auto crossfeed table each reversal 0.5 - 5.0 mm 0.5 - 5.0 mm
    8 Least count of verticle feed hand wheel 0.01 mm 0.01 mm
    9 Least count of microfeed 0.002 mm 0.002 mm
    GRINDIND HEAD
    10 Size of grinding wheel (Dia × Width × Bore) 200 × 13 × 31.75 mm 200 × 13 × 31.75 mm
    11 Spindle motor 1 HP 2 HP
    12 Speed of Grinding wheel 2800 rpm 2800 rpm
    HYDRAULIC SYSTEM
    13 Working pressure 10 kg/Cm2 10 kg/Cm2
    14 Parmenent Magnetic chuck 200 × 450 mm 250 × 600 mm
    15 Hydraulic motor 1.5 hp 1.5 hp
    16 Tank capacity 40 liters 40 liters
