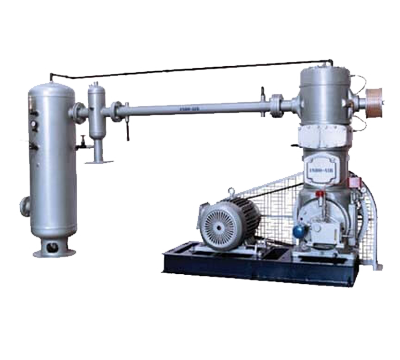

HEAVY DUTY VERTICAL AIR COMPRESSOR

  • Innovation in Piston Technology- Double Acting gives you more volume of the Air throught less consumption of power compared to other single acting Piston Compressors. INDO-AIR has state of the art technology in Reciprocating Compressor design & application that is second to none.

      Features :

    •  Water Cooled, Double Acting.

    • Lubricated & Non Lubricated Versions.

    • High Reliability & Ease of Maintenance.

    • Designed for continuous Duty Operation.

    • Totally Engineered & Proven in Performance..

    TECHNICAL SPECIFICATIONS :

    MODEL MOTOR NO. OF
    CYL.    		 RPM RECEIVER MAX. PRESSURE PISTON DISPL
    HP KW CFT. LTRS. PSIG KG/CM2 CFM M3/M LTR / MIN
    IA 75L 25 18.50 1 600 10.60 300 125 8.78 131 3.70 3700
    IA 75NL 25 18.50 1 600 10.60 300 125 8.78 131 3.70 3700
    IA 75L 30 22.00 1 725 10.60 300 125 8.78 160 4.53 4530
    IA 75NL 30 22.00 1 725 10.60 300 125 8.78 160 4.53 4530
    IA 85L 40 30.00 1 750 18.85 533 100 7.03 215 6.10 6100
    IA 85NL 40 30.00 1 750 18.85 533 100 7.03 215 6.10 6100
    IA 87L 50 37.00 1 650 34.30 971 135 9.50 260 7.35 7350
    IA 87NL 50 37.00 1 650 34.30 971 135 9.50 260 7.35 7350
    IA 955L 40 30.00 1 675 34.30 971 60 4.22 275 7.80 7800
    IA 955NL 40 30.00 1 675 34.30 971 60 4.22 275 7.80 7800
    IA 97L 60 45.00 1 650 42.40 1200 110 7.70 330 9.34 9340
    IA 97NL 60 45.00 1 650 42.40 1200 110 7.70 330 9.34 9340
    IA 957L 60 45.00 1 650 42.40 1200 65 4.57 368 10.40 10400
    IA 957NL 60 45.00 1 650 42.40 1200 65 4.57 368 10.40 10400
