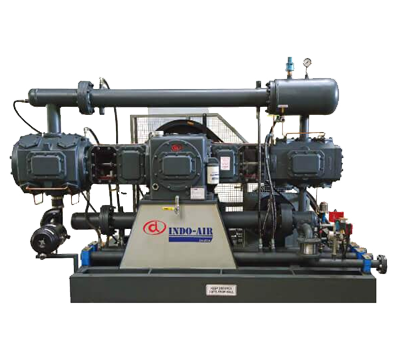

OIL FREE MEDIUM PRESSURE

  • The search for a reliable, 100% oil free quality air has prompted Indo-Air to introduce a totally engineered, tested and high performance range of compressors.

      Indo Numeric Controller :

    • User- friendly page displays.

    •  Touch screen MMI, clear & easy to modify parameters.

    • All electrical control through MMI operation.

    • Status warning indication, thus ensuring prevention of damages.

    •  Service warning signals to indicate oil filter / air filter change & Alarm.

    •  Touch screen MMI, clear & easy to modify parameters.

      Valve :

    • Valve material is carefully chosen for longer life time and performance.

    •  Material with minimum wear property is used for the valve seats & valve plates.

    • Valves designed to optimize flow area to minimize pressure loss thus resulting in to less power consumption.


    TECHNICAL SPECIFICATIONS :

    MODEL MOTOR Discharge
    Pressure Bar     		FAD
    CFM     		Discharge
    Pressure Bar     		FAD
    CFM
    HP KW
    IAM 30 30 22 7 160 10 124
    IAM 40 40 30 7 226 10 190
    IAM 50 50 37 7 275 10 214
    IAM 60 60 45 7 335 10 285
    IAM 75 75 55 7 414 10 326
    IAM 100 100 75 7 523 10 473
    IAM 120 120 90 7 647 10 578
    IAM 150 150 110 7 818 10 684
    IAM 180 180 132 7 924 10 821
    IAM 215 215 160 7 1184 10 960
