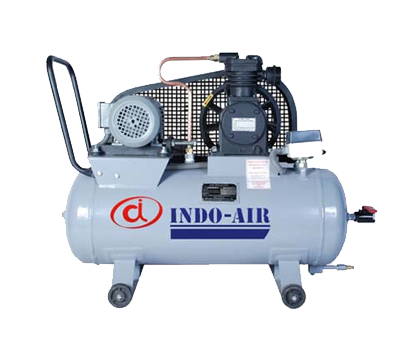

RECIPROCATING LOW AIR COMPRESSOR

  • Single-stage air compressors are designed for low pressure application. These compressors have cylinders of same size (regardless of the number of cylinders). Robust, overhung design crankshaft for reliability & easy maintenance, solid end connecting rods, high thermal efficiency, inter-cooling, reliable splash lubrication and balanced V-type construction for smooth, vibration-free operation.

      Optional Accessories :

    •  Low Oil Level Switch.

    • Receiver – vertical or loose supply.

    • Drive : Motor or Engine.

    • Pre filter & After filter : For oil removal purpose.

    • Air Dryer : For dry or moisture free air – Refrigerated; Heatless Air Dryer.

    •  Air Dryer : Condensate Drain Trap : Automatic Type.

      Factors to consider in an Air Compressor :

    • How often the compressor is used and how it is used.

    • Consider the accessory which is to be installed with each compressor.

    • Consider the duty cycle of your compressors as most compressors are not meant to run all the time.

    • Short list in-plant compressed air application. Make a list of equipment in the plant Consuming compressed air.

    • Other like maintenance, life expectancy, trouble shooting (also know the manufacture network/ regional offices), repair costs, etc.


    TECHNICAL SPECIFICATIONS :

    MODEL MOTOR NO. OF
    CYL.    		 RPM RECEIVER MAX. PRESSURE PISTON DISPL
    HP KW CFT. LTRS. PSIG KG/CM2 CFM M3/M LTR/MIN
    IA 31 1.0 0.75 1 600 2.50 70 125 8.78 4.12 0.117 117
    IA 32 2.0 1.50 2 600 3.55 100 125 8.78 8.25 0.234 234
    IA 33 3.0 2.20 2 960 5.30 150 125 8.78 13.75 0.389 389
    IA 161 1.0 0.75 1 600 2.50 70 125 8.78 4.00 0.110 110
    IA 265 2.0 1.50 2 460 5.30 150 80 5.62 10.35 0.293 293
    IA 265 3.0 2.20 2 675 5.30 150 80 5.62 15.18 0.430 430
    IA 274 5.0 3.70 2 660 7.95 225 80 5.62 26.50 0.750 750
    IA 274 7.5 5.50 2 865 7.95 225 80 5.62 34.64 0.980 980
    IA 285 7.5 5.50 2 505 8.83 250 80 5.62 40.00 1.130 1130
    IA 285 10.0 7.50 2 660 8.83 250 80 5.62 52.50 1.485 1485
    IA 37S 10.0 7.50 2 750 10.80 300 60 4.21 68.10 1.928 1928
    IA 37S 12.5 9.30 2 900 10.80 300 60 4.21 81.75 2.315 2315
    IA 37S2 12.5 9.30 2 800 10.60 300 40 2.81 88.00 2.490 2490
    IA 45S 15.0 11.00 3 700 17.66 500 60 4.21 95.40 2.700 2700
    IA 45S 20.0 15.00 3 900 17.66 500 60 4.21 122.65 3.470 3470
    IA 45S2 20.0 15.00 3 850 17.66 500 40 2.81 140.15 3.969 3969
