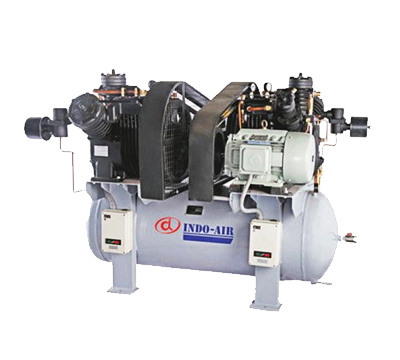

RECIPROCATING HIGH PRESSURE AIR COMPRESSOR

  • Multi-stage, High Pressure Air Compressors are available in two & three stages in two cylinder & three cylinder versions. Robust, overhung design crankshaft for reliability and easy maintenance, solid end connecting rods, highly thermal efficient inter cooling, totally reliable splash lubrication and balanced V-type construction for smooth vibration-free operation.

      Optional Accessories :

    •  Low Oil Level Switch.

    • Receiver – vertical or loose supply.

    • Sound Enclosures : For low noise.

    • Pre filter & After filter : For oil removal purpose.

    • Air Dryer : For dry or moisture free air – Refrigerated; Heatless Air Dryer.

    •  Air Dryer : Condensate Drain Trap : Automatic Type.

      Factors to consider in an Air Compressor :

    • How often the compressor is used and how it is used.

    • Consider the accessory which is to be installed with each compressor.

    • Consider the duty cycle of your compressors as most compressors are not meant to run all the time.

    • Short list in-plant compressed air application. Make a list of equipment in the plant Consuming compressed air.

    • Other like maintenance, life expectancy, trouble shooting (also know the manufacture network/ regional offices), repair costs, etc.


    TECHNICAL SPECIFICATIONS :

    MODEL MOTOR NO. OF
    CYL.    		 RPM RECEIVER MAX. PRESSURE PISTON DISPL
    HP KW CFT. LTRS. PSIG KG/CM2 CFM M3/M LTR/MIN
    IA 261 3.0 2.20 2 675 5.30 150 500 35.15 7.60 0.210 210
    IA 37T2 7.5 5.50 2 530 10.60 300 500 35.15 24.00 0.680 680
    IA 37T2 10.0 7.50 2 710 10.60 300 500 35.15 32.25 0.920 920
    IA 37T2 12.5 9.30 2 800 10.60 300 500 35.15 36.36 1.030 1030
    IA 45T2 15.0 11.00 3 760 17.66 500 500 35.15 41.80 1.180 1180
    IA 45T2 15.0 11.00 3 650 17.66 500 1000 70.30 35.75 1.010 1010
    IA 45T2 20.0 15.00 3 900 17.66 500 500 35.15 49.50 1.400 1400
    IA 45T2 20.0 15.00 3 900 17.66 500 600 42.18 49.50 1.400 1400
    IA 45T2 20.0 15.00 3 900 17.66 500 800 56.25 49.50 1.400 1400
    IA 45T2 20.0 15.00 3 875 17.66 500 1000 70.30 48.00 1.360 1360
    IA 45T2TWIN 20+20 15+15 3+3 900 17.66 500 500 35.15 99.00 2.800 2800
    IA 505T2 15.0 11.00 3 600 17.66 500 375 26.36 55.00 1.560 1560
    IA 505T2 20.0 15.00 3 750 17.66 500 375 26.36 68.00 1.930 1930
    IA 505T2 25.0 18.00 3 900 17.66 500 375 26.36 81.80 2.310 2310
    IA 505T2WIN 20+20 15+15 3+3 750 17.66 500 375 26.36 136.00 3.860 3860
    IA 505TK 20.0 15.00 3 650 17.66 500 425 30.00 68.00 1.926 1926
    IA 505TK 25.0 18.00 3 800 17.66 500 425 30.00 85.00 2.407 2407
    IA 505TK 30.0 22.00 3 900 17.66 500 425 30.00 99.00 2.804 2804
